This is where a session border controller (SBC) comes in. SIP trunking supplies the connection. The SBC governs and protects the sessions crossing between your network and your provider's network.
This guide covers the security controls an SBC provides, deployment options, how to plan for capacity, what to look for in a provider, and when a fully managed service might make more sense than running your own SBC.
Key Takeaways
- SIP trunking carries your voice traffic; an SBC controls, secures, and manages that traffic at the network edge.
- SBCs protect and stabilize calls with topology hiding, encryption, fraud controls, session normalization, and automatic failover.
- Assess channel needs, PBX compatibility, emergency calling setup, and redundancy before you choose a solution.
- Many businesses don't need to run their own SBC if a provider already manages that function securely.
What Is Secure SBC SIP Trunking?
SIP Trunking in Plain Terms
SIP trunking uses an IP connection to carry voice sessions between your phone system and the public switched telephone network (PSTN) through a service provider. Instead of physical phone lines, calls travel as data over your existing internet connection. Ribbon Communications describes this as covering PSTN origination and termination, site-to-site connectivity, and hosted communications access — the three most common use cases businesses run into.
What an SBC Actually Does
An SBC is a hardware, virtual, or cloud-based component sitting at the network edge. It mediates SIP sessions between your trusted internal systems (your PBX or UC platform) and external parties: carriers, remote workers, or partner networks. Ribbon defines it plainly as a device that protects and regulates IP communications flows at network borders.
SBC vs. SIP Server vs. Firewall
These three get confused constantly. Here's the actual breakdown:
| Component | Primary Role |
|---|---|
| SIP Server | Handles registration, signaling, and call routing between endpoints |
| SBC | Controls signaling and media at the trust boundary; terminates and re-originates sessions |
| Firewall | Filters traffic by rules like IP address and port |
A firewall doesn't understand SIP sessions or voice-media behavior. It can block or allow a connection, but it can't manipulate a live call the way an SBC does. Oracle's white paper puts it directly: a conventional firewall cannot actively manage real-time voice sessions the way an enterprise SBC can.

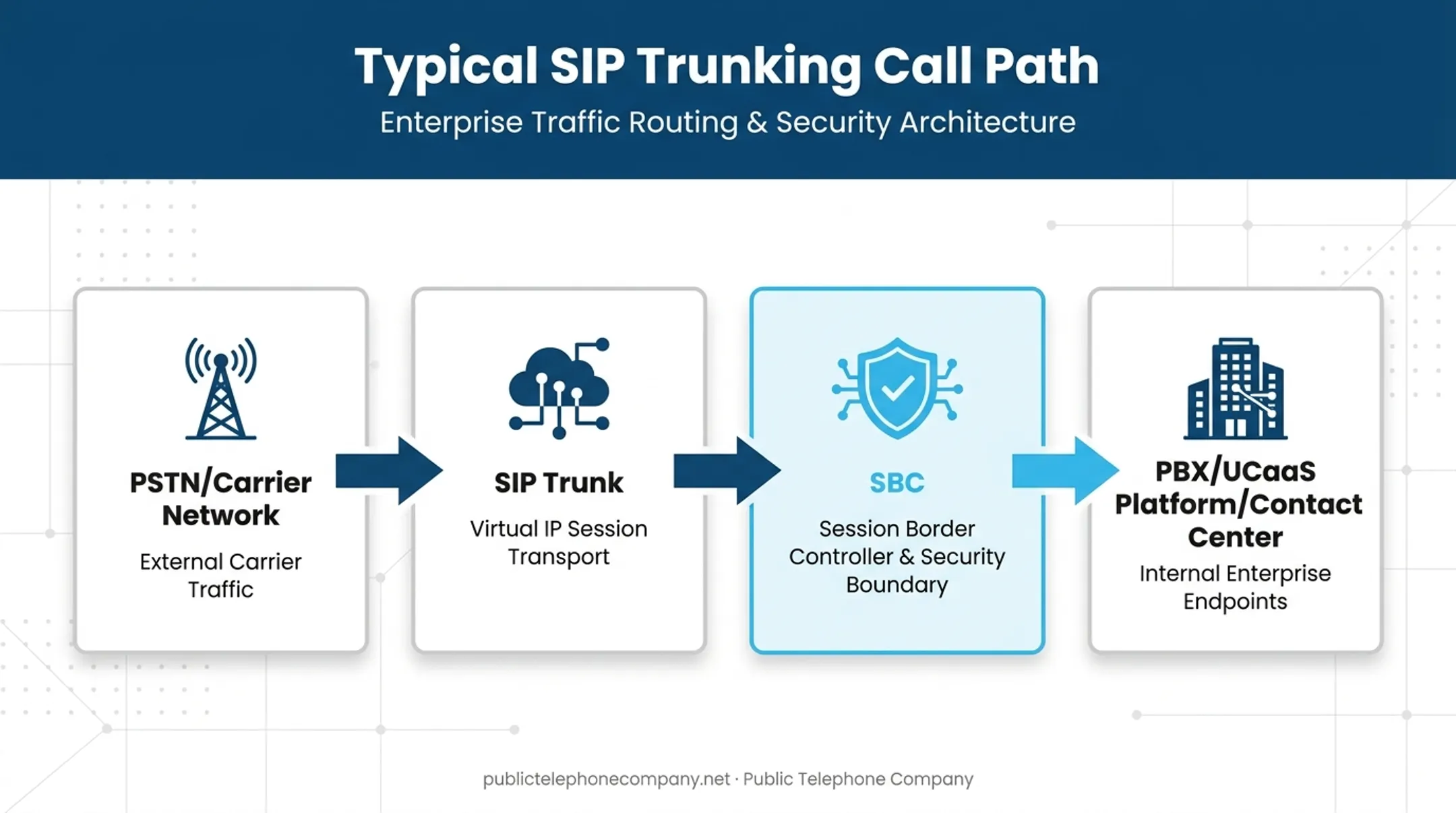

The Typical Call Path
Here's how traffic actually moves:
PSTN/carrier network → SIP trunk → SBC → PBX, UCaaS platform, or contact center
The SBC sits right at that boundary as a dedicated policy and security layer—not an afterthought.
Secure SBC SIP trunking is the combination of a SIP trunk for connectivity and an SBC to inspect, control, and protect every session at the edge. Assuming your SIP trunk alone provides adequate protection is a common and costly mistake.
How an SBC Secures SIP Trunking
Reducing Exposure at the Network Edge
An SBC terminates incoming sessions and re-originates them before they ever touch your internal network. External systems never talk directly to your PBX or endpoints. That design choice alone cuts a large share of the attack surface.
Topology hiding takes this further. The SBC manipulates SIP headers so external parties never see your internal IP addresses, hostnames, or network layout. If an attacker can't map your network, they can't easily attack it.
Core Security Controls to Evaluate
When comparing SBC options, look for:
- SIP message validation to reject malformed or malicious packets
- Access-control lists and IP allowlisting to restrict which sources can connect
- Authentication and registration protection against hijacking attempts
- Rate limiting to blunt denial-of-service and registration-flood attacks
- Anomalous call-behavior detection for unusual calling patterns
These controls address real, documented risks. Toll fraud and account manipulation aren't theoretical concerns.
The Communications Fraud Control Association's 2023 global survey found telecom fraud losses reached an estimated $38.95 billion, up 12% from 2021, or roughly 2.5% of total telecommunications revenue. PBX fraud and account takeover ranked among the top methods.
Encryption: TLS and SRTP
Perimeter controls stop bad traffic at the edge. Signaling and media still need separate protection in transit:
- TLS secures SIP signaling in transit, hop-by-hop
- SRTP (or an equivalent) protects the actual voice media
Before deploying, verify your SBC, PBX, and carrier all support compatible encryption, and confirm how certificates and keys will be managed. Mismatched TLS versions or expired certificates cause more failed calls than most people expect.
STIR/SHAKEN and Caller ID Authentication
STIR/SHAKEN is a caller-ID authentication framework, not a general security tool. Originating carriers sign caller ID data, and terminating carriers validate it before the call completes. The FCC's call authentication rules require most U.S. voice providers to implement this for IP-based calls.
STIR/SHAKEN authenticates who's calling. It doesn't encrypt signaling or media, and it doesn't replace the broader security functions an SBC handles.

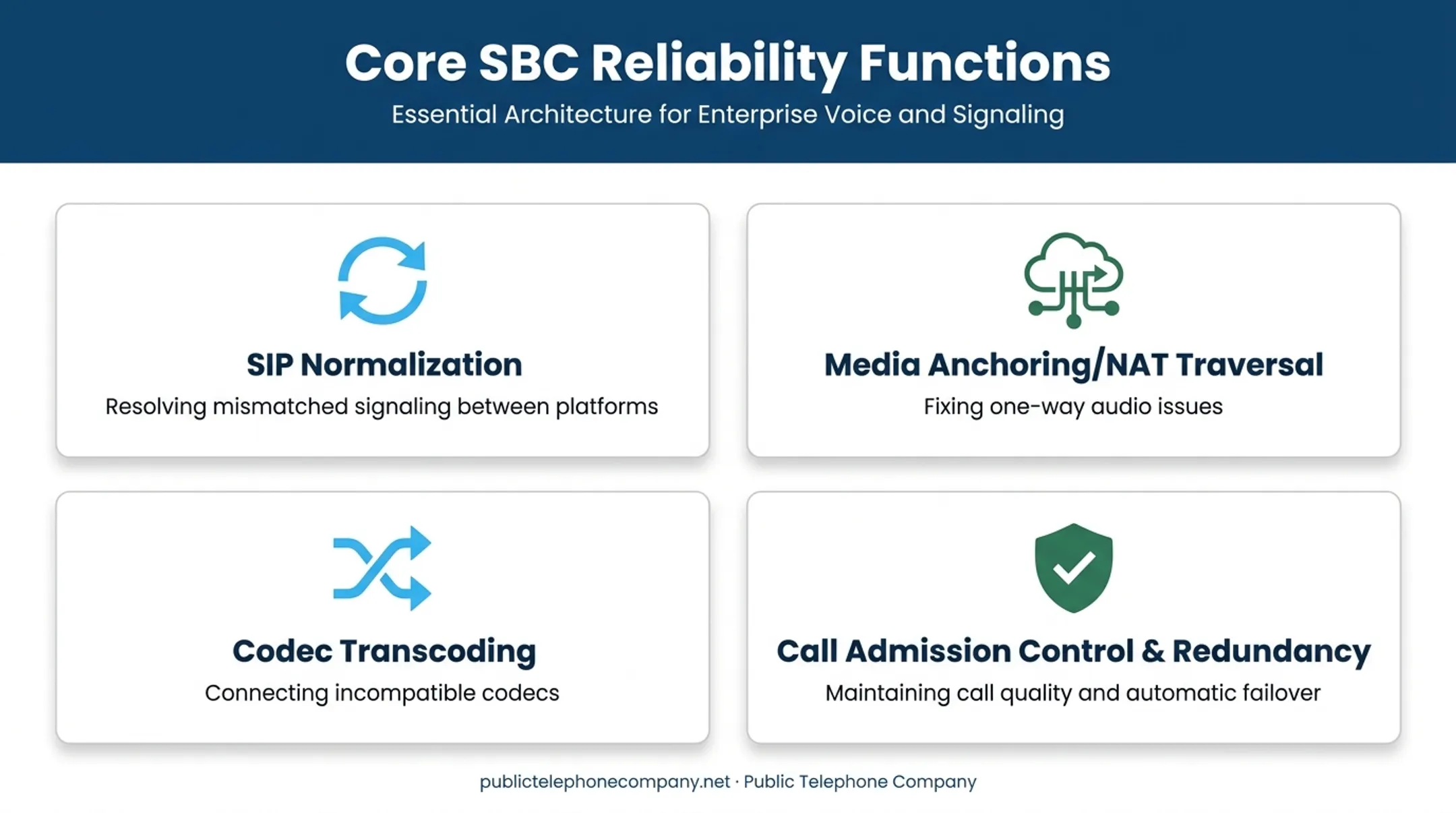

How an SBC Improves Reliability and Interoperability
SIP Normalization Across Platforms
Different PBX vendors, SIP providers, and legacy systems don't always speak SIP the same way. Headers, registration behavior, response codes, and session timers can vary just enough to break interoperability. SIP normalization rules on an SBC adjust these differences on the fly, so mismatched systems work together.
Media Anchoring and NAT Traversal
Media anchoring means voice traffic (RTP) routes through the SBC rather than flowing directly between endpoints. That design fixes a common failure mode: one-way audio from NAT mismatches between your network and your provider's. It also gives you one place to monitor media and enforce security policy.
Codec Negotiation and Transcoding
When two systems don't share a common codec, calls simply fail to connect audio. An SBC can transcode between codecs — say, converting G.711 to G.729 — so both legs of a call connect properly. Transcoding adds processing overhead, so confirm your SBC's capacity matches expected call volume before you rely on it in production.
Call Admission Control and Redundancy
Reliability also depends on how the SBC protects call quality under load:
- Bandwidth-aware call admission control, preventing oversubscription during peak hours
- QoS prioritization, keeping voice traffic ahead of less time-sensitive data
- Jitter and packet-loss monitoring, flagging quality issues before users notice them
For continuity, look at dual-SBC deployments, provider failover, and geographic redundancy. AudioCodes' documentation on high-availability configurations describes how a 1+1 redundant setup maintains active calls during a switchover if the primary device fails.
Real-world example: A multi-location professional services firm runs a contact center from one office and remote staff across three others. One SIP provider outage should not silence every site.
With redundant SBCs and a backup route in place, calls shift to a secondary path automatically. Staff keep working while IT fixes the underlying issue.
Planning and Deploying a Secure SBC SIP Trunk
Assess Network Readiness First
Before touching SIP trunk configuration, evaluate:
- Internet capacity, latency, jitter, and packet loss
- Firewall behavior and existing VLAN/QoS design
- Public IP requirements
- Power and connectivity redundancy
Skipping this step is the number one cause of "it worked in testing but not in production" complaints.
Estimate Your Channel Needs
Don't just assign one channel per employee. That approach almost always overspends or undersizes. Instead, review:
- Busy-hour call volume
- Queue activity and contact center load
- Seasonal peaks
A commonly used method comes from Erlang B calculations. A No Jitter article on sizing SIP trunks outlines the formula: Busy Hour Traffic = (Calls Arriving in the Busy Hour × Average Call Length in Minutes) ÷ 60.
That Erlang load figure, combined with your target grade of service, determines how many trunk channels you actually need. Add headroom for growth and failover, but avoid padding capacity you'll never use.
Choose a Deployment Model
| Model | Best For |
|---|---|
| On-premises hardware SBC | Full control, local integration, in-house expertise |
| Virtual SBC | Flexible infrastructure, data center environments |
| Cloud/managed SBC | Reduced maintenance, easier scaling, limited IT staff |
Your choice depends on internal expertise, compliance requirements, number of locations, and disaster-recovery goals.
Implementation Checklist
- Document current PBX and carrier configuration
- Confirm interoperability between systems
- Configure security policies and access controls
- Test inbound and outbound routing
- Validate emergency calling (911) functionality
- Run failover tests under simulated outage conditions
- Monitor call quality during a controlled migration
After launch, ongoing operations matter just as much. Set a recurring schedule for:
- Patching and certificate renewal
- Access reviews and fraud alerts
- Call-detail-record monitoring
- Periodic failover testing
Treat these as continuous operations, not a one-time setup.
When Do You Need a Dedicated SBC?
When It Makes Sense
Consider a dedicated SBC if your business:
- Connects an on-premises PBX directly to the public internet
- Uses multiple SIP providers simultaneously
- Supports a large remote or hybrid workforce
- Runs a contact center with strict uptime requirements
- Integrates platforms that lack native interoperability
When It Might Not Be Necessary
If you run a fully managed cloud phone system, the provider likely already handles SBC functionality, encryption, fraud monitoring, and failover. Adding your own SBC on top is often redundant. Many small and midsize businesses fall into this category.
Decision Checklist
Ask these questions before deciding:
- Who manages the SBC: you, or the provider?
- Where is it deployed, and who owns that infrastructure?
- What traffic does it actually protect?
- How are security incidents handled, and by whom?
- Do the provider's service-level commitments match your business's needs?
How to Evaluate a Secure SIP Trunking Provider
A solid provider checklist covers:
- U.S. emergency calling (911) support
- Number porting assistance
- PBX and SBC interoperability
- Encryption and caller authentication (STIR/SHAKEN)
- Fraud monitoring and redundancy
- Clear service-level commitments
- Transparent channel or usage pricing
Responsive technical support matters as much as the technical specs. When a business phone system goes down, you need real people answering, not a ticket queue. Look for:
- Implementation assistance and clear documentation
- Real-time status visibility
- Defined escalation procedures
- 24/7 access to live support staff
Public Telephone Company, based in Oviedo, Florida, offers scalable SIP trunking and cloud-hosted communications with 24/7 technical support, an implementation team, and custom integrations. The platform serves businesses from small offices to organizations with 100,000+ users.
Before signing with any provider, confirm which security and SBC controls are provider-managed versus customer-managed. Clear ownership prevents coverage gaps after go-live.
Conclusion
Secure SBC SIP trunking works as a layered architecture. SIP trunking supplies external voice connectivity. The SBC enforces security, interoperability, media control, and resilience on top of that connection.
Before you go live, work through these steps:
- Determine your channel demand
- Assess network readiness
- Pick a deployment model that fits your team's expertise
- Verify what your provider manages versus what you manage
- Test failover
If you're weighing PBX compatibility, channel capacity, or support requirements for your SIP trunking setup, Public Telephone Company's team can walk through your specific configuration. Call 877-314-4080 to start that conversation.
Frequently Asked Questions
How many SIP trunk channels do I need?
Channel needs depend on simultaneous busy-hour calls, queue activity, contact center volume, and expected growth. Use actual call records or a monitored pilot rather than a fixed one-channel-per-user ratio.
What does SIP trunking mean?
SIP trunking uses an IP connection to carry voice sessions between a business phone system and the public telephone network through a service provider, replacing traditional physical phone lines.
Does SIP trunking require an SBC?
Not necessarily a customer-hosted one. An SBC is valuable at external network boundaries, but many cloud communications providers manage that function on the customer's behalf.
How does an SBC secure SIP trunking?
An SBC filters SIP-aware traffic, hides internal network topology, supports encryption, enforces fraud controls, manages NAT traversal, and shields the internal PBX from direct external contact.
Can a firewall replace an SBC for SIP trunking?
No. A firewall controls general network access by rules like IP and port; an SBC understands SIP signaling and media, and can normalize, anchor, and actively manage voice sessions in ways a firewall cannot.
