Introduction
Every internet-based business call, video meeting, or softphone conversation starts with a handshake you never see. That handshake is SIP: Session Initiation Protocol, the signaling layer behind cloud PBX systems, unified communications platforms, and modern business phone service.
US organizations are moving off legacy copper lines fast. Non-ILEC interconnected VoIP subscriptions now make up 78% of wireline business connections, according to the FCC's 2024 voice telephone services report. Small businesses, law firms, medical offices, and contact centers are all part of that shift.
SIP often gets mixed up with VoIP, SIP trunking, and the audio stream itself. Those are related pieces, not the same layer. This guide explains what a SIP session is, how its messages open and close a call, and where SIP sits in a modern business phone system.
Key Takeaways
- SIP establishes, manages, and ends real-time voice and video sessions, but doesn't carry the media itself
- A SIP session is one call; a SIP trunk is the connection that carries many sessions at once
- RTP handles the actual audio or video; SDP describes the codecs and connection details
- A standard call flow runs through INVITE, 180 Ringing, 200 OK, ACK, media exchange, and BYE
- Cloud phone systems, softphones, video conferencing, and contact center routing all run on SIP
What Is Session Initiation Protocol (SIP)?
SIP is a standardized, text-based signaling protocol used to locate endpoints and initiate, control, modify, and end real-time communication sessions over IP networks. It's defined in RFC 3261, the foundational IETF standard published in 2002, and it works much like HTTP: requests and responses passed between systems.
Here's the problem SIP solves. Before SIP, connecting a call meant dedicated physical circuits. Phones, softphones, PBXs, and cloud platforms had no shared way to find each other or agree on how to talk. SIP gives every device a logical address and a common language to negotiate a session, regardless of vendor or network.
What SIP Is Not
People often use "SIP" and "VoIP" interchangeably, but they're not the same thing. VoIP is the broader category of transmitting voice over internet connections. SIP is one signaling protocol commonly used to make that happen.
A few quick clarifications:
- SIP is not a phone number or a SIP trunk (the trunk is the connection; SIP is the language)
- SIP normally does not carry audio or video itself
- SIP handles the control plane; media travels separately over RTP or encrypted SRTP
Key Roles You'll Run Into
Working with SIP means bumping into a handful of recurring terms:
- User agents: phones, softphones, or servers acting as either the caller or the receiver
- SIP URIs: the logical addresses that identify users, similar to an email address
- Registrar servers: track which device is currently reachable at which address
- Proxy servers: route requests toward their destination
- Redirect servers: point callers to alternate locations instead of forwarding the request
- Session border controllers (SBCs): sit at network edges managing signaling, media, or both
SIP has stuck around for over two decades because it's interoperable and extensible. It connects endpoints across vendors and supports voice and multimedia alike. Signaling typically runs over UDP or TCP, with TLS available when encryption is required.
How Does a SIP Session Work?

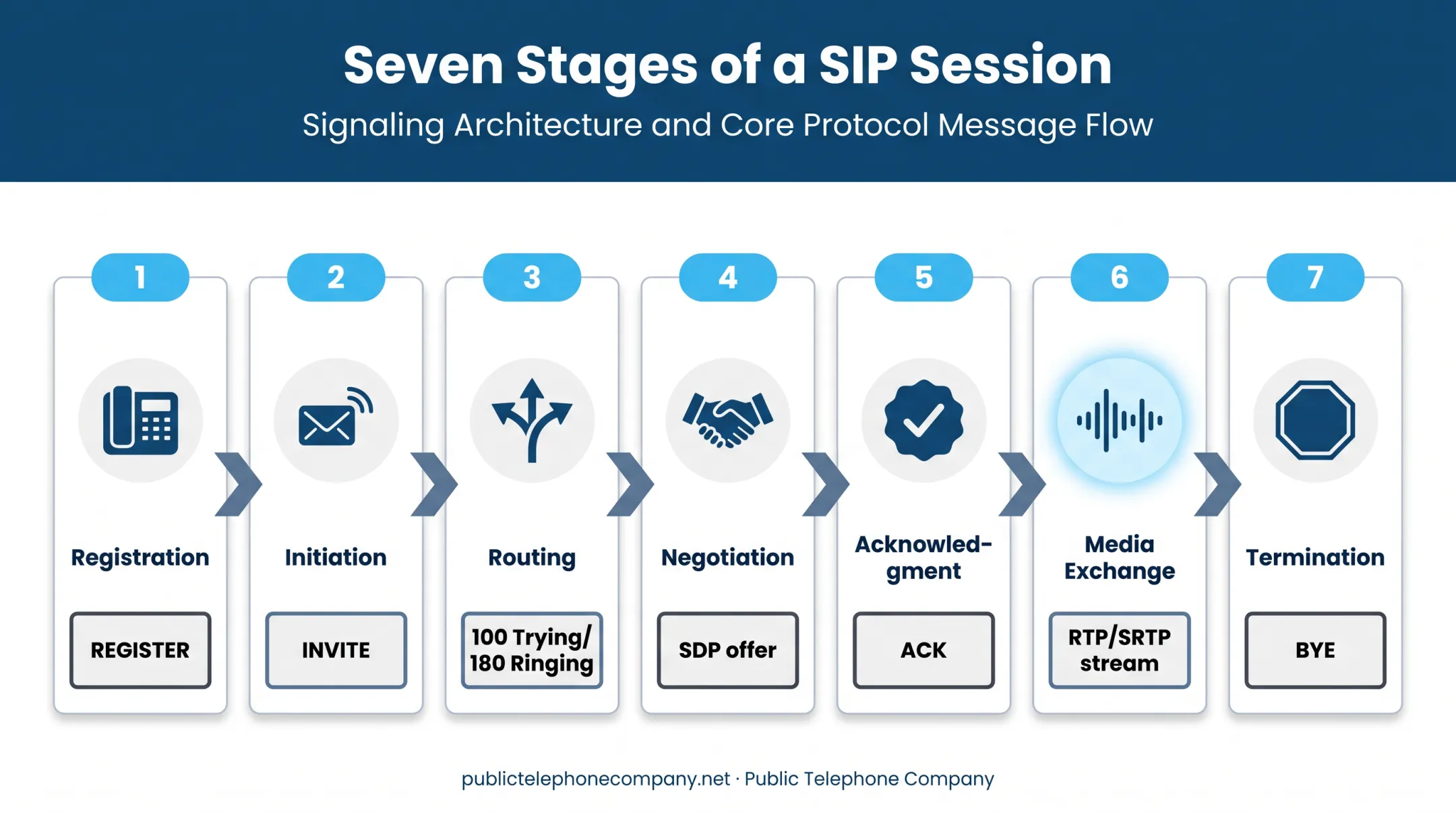

A SIP session moves through distinct stages: registration, initiation, routing, negotiation, acknowledgment, media exchange, and termination. Each stage has its own message types, and knowing them makes dropped-call troubleshooting much faster.
Registration and Availability
Before a phone can receive calls, it needs to tell the network where it is. A SIP phone or softphone sends a REGISTER message to a registrar, which associates the user's logical SIP address with the device's current location.
This registration feeds a location service that proxies consult when routing incoming calls. If a device fails to register, whether from authentication issues, network problems, or being powered off, calls simply can't reach it.
Session Initiation and Routing
To start a call, the caller's device sends an INVITE request. This includes addressing information and an SDP offer describing supported codecs, media types, and connection details.
The receiving side responds through a predictable sequence:
- 100 Trying — acknowledges the request is being processed
- 180 Ringing — the destination device is alerting the user
- 200 OK — the call has been accepted
Session Establishment and Media
Once the caller receives 200 OK, it sends ACK, completing the signaling handshake. At this point, the session is officially established.
Voice and video do not travel inside these SIP messages. Media flows over RTP, or encrypted SRTP, on a separate path negotiated in the SDP exchange. That split matters in troubleshooting: one-way audio, dropped media, or garbled calls are often RTP or NAT problems, not SIP signaling failures, even when the symptoms look the same to end users.
Session Control and Termination
While a call is active, SIP supports changes like hold, transfer, codec renegotiation, or adding participants to a conference. These typically happen through a re-INVITE, a new offer sent within the existing session.
Ending the call is straightforward. Either party sends BYE, and the other confirms with a response.
In practice, failed requests, firewall rules, NAT misconfiguration, codec mismatches, or unstable network conditions can interrupt that flow. Validate network readiness before you put any SIP-based system into production.
Where Are SIP Sessions Used?
SIP sessions are the plumbing behind nearly every modern business phone system. A hosted VoIP or cloud PBX platform uses SIP signaling to connect users internally, manage extensions, and reach the outside world through SIP trunking.
Common business scenarios include:
- Remote and hybrid teams using softphones from home offices or coworking spaces
- Multi-location companies running one unified phone system across several sites
- Professional services firms managing call routing between partners and staff
- Healthcare front desks handling appointment scheduling and after-hours calls
- Contact centers distributing inbound calls across available agents
SIP isn't limited to two-party voice calls, either. Depending on the platform, it can support video conferencing, presence indicators, messaging, call transfers, IVR menus, and integrations with CRM or other business applications.
Those same session mechanics show up in production cloud PBX, UCaaS, and SIP trunking deployments—including platforms from Public Telephone Company that run over an existing high-speed internet connection. AI-powered auto attendant and IVR features can route calls automatically, and custom integrations tie CRM tools into the unified communications environment.

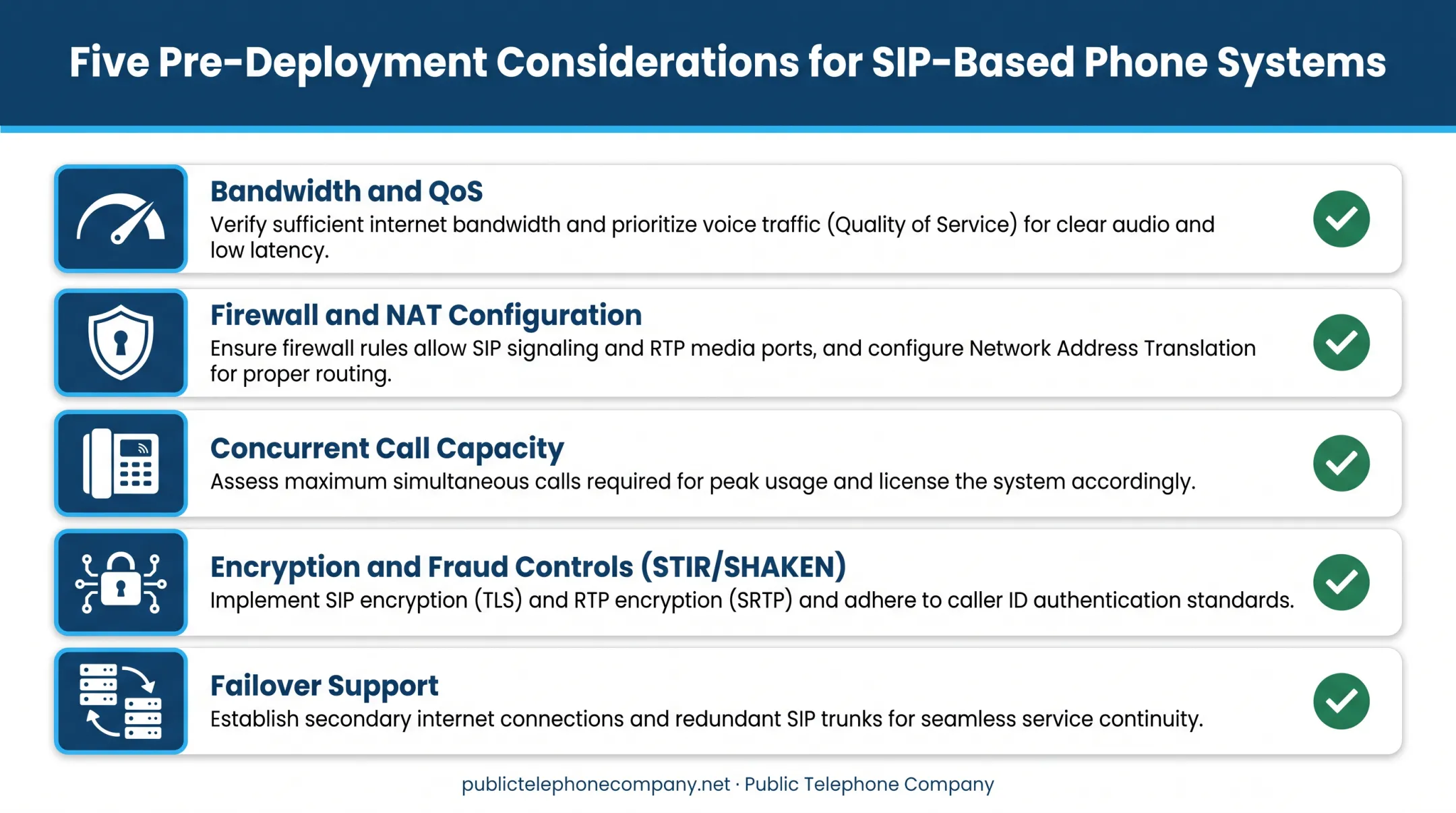

Before you deploy a SIP-based system, lock down a few operational basics:
- Bandwidth and QoS — keep call quality steady when traffic spikes
- Firewall and NAT configuration — prevent one-way audio and failed media paths
- Concurrent call capacity — size trunks and licenses to real peak usage
- Encryption and fraud controls — include STIR/SHAKEN where required
- Failover support — keep phones online if a circuit or site goes down
When signaling issues hit after hours, 24/7 technical support—such as Public Telephone Company’s—matters as much as the feature list.
Conclusion
SIP is the signaling language that lets endpoints find each other, negotiate how they'll communicate, and manage a session from start to finish, while RTP or SRTP carries the actual voice and video. That distinction alone clears up most of the confusion between SIP, VoIP, and SIP trunking.
Understanding how SIP works gives businesses a real basis for comparing hosted VoIP, PBX, and SIP trunking options. Capacity, interoperability, security, and network readiness all matter more than marketing language.
Businesses replacing aging landlines or expanding across new locations should weigh whether a scalable SIP trunking or hosted communications solution fits their team size and existing equipment. Public Telephone Company offers services that scale from a single location to 100,000+ users, backed by 24/7 support.
Frequently Asked Questions
What is SIP in telecom?
SIP is the signaling protocol used to establish, manage, and terminate voice, video, and other real-time sessions across IP networks. It's separate from both the internet connection itself and the media stream carrying the actual conversation.
What does SIP stand for?
SIP stands for Session Initiation Protocol. It controls the setup, modification, and termination of real-time communication sessions between devices.
What is the difference between SIP and VoIP?
VoIP describes the broader concept of delivering voice over internet networks. SIP is one specific signaling protocol commonly used to establish and manage those VoIP calls.
What is the difference between PSTN and SIP?
PSTN is the traditional public switched telephone network built on physical circuits. SIP is an IP-based signaling protocol, and SIP-based services connect to the PSTN through a provider or gateway when needed.
